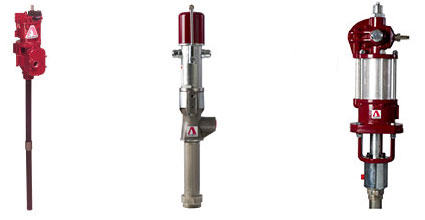

Chemical and Material Handling Pumps
The Chemical and Material Handling Pumps are designed to provide the capabilities and versatility needed to construct systems meeting all the individual requirements of various applications. Chemicals and materials are pumped from their original containers or bulk storage tanks, transferred to the point of application and then sprayed, dispensed or extruded.
The most common applications are:Dispense – Dispensing involves the transfer of pumpable materials from their original containers or bulk storage to the point of application.
Dispensing and transferring pumps are available to handle very light liquids, heavy sealers, inks and other similar products.Extrude – Extruding is the application of heavy materials in a usable form, such as ribbons or beads.
Extruding systems can handle caulks and sealers and varied chemical, food or pharmaceutical materials.
Spray – Materials may be sprayed using air-atomizing or airless spray systems. Applications include the spraying of adhesives, roof coatings and hundreds of similar applications.
Every pump is suitable depending on fluid class.
• Class 1: Light Fluids < 400 cp
• Class 1 & 2: Light to Medium Fluids 5 to 4000 cp
• Class 1, 2 & 3: Light to Heavy Fluids 5 to 30000 cp
• Class 2, 3 & 4: Medium to Heavy Fluids 200 to Non- Measurable Viscosity.

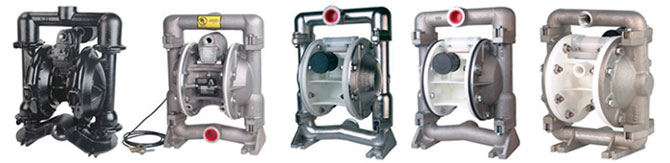

Our Low-Pressure Diaphragm Pumps are designed for both high-volume transfer and dispensing a variety of low-viscosity fluids. Medium-pressure pumps make used oil evacuation and transfer safe and simple. These high-volume pumps transfer used oil to storage tanks quickly, and are designed to handle the abrasive materials that can be contained in used oil. All diaphragm pumps are equipped with an air connector and quick detach air coupler.
