TOTAL-LUB system operates by converting liquid lubricant into micron particle oil mist which, when introduced into the main air line network, vaporizes into an oil micron-fog. The oil micron-fog permits lubrication of any pneumatically-driven components and equipment that the main air line network is serving, such as valves, cylinders, hand-tool turbines, etc.

The main advantage of TOTAL-LUB is, therefore, not only its ability to serve the entire air line network with lubricant, but to do so utilizing the minimum amount of oil and respecting the environment.

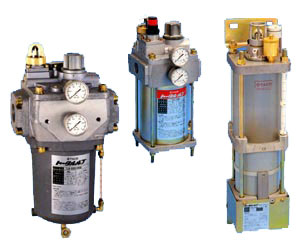

Total-Lub systems available.

• In-line type: TLC series with threads of Rc3/4" and Rc1”. TLB series with threads of Rc1-1/4” and Rc2”.

• By-pass type: TLD series, electrically-operated booster and TA4 series, pneumatically-operated booster. Threads of both series are from Rc1” to Rc3”.
