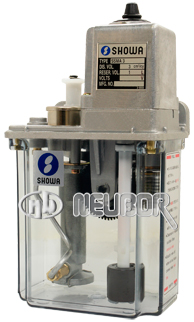

SHOWA SSMA PISTON PUMP

The SSMA model is a piston pump based upon the SMA model, possessing the same motor and mechanisms. However, the SSMA is far more compact with a 1L plastic tank, allowing the unit to be installed in areas where space is limited.

Two fixed discharge volume types are available, dispensing either a set volume of 2cc/cy or 3cc/cy.

Technical Features

Model Type	Cycle Time (minutes)	Discharge Volume (cc/cy)	Max. Pressure (MPa)	Discharge Port Size	Tank Capacity (L)	Effective Tank Capacity (L)
SSMA25A(F)	5	2 Non adjustable	0.3 (3 Bar)	M8 x 1.0	1	0.8
SSMA210A(F)	10
SSMA215A(F)	15
SSMA230A(F)	30
SSMA260A(F)	60
SSMA2120A(F)	120
SSMA35A(F)	5	3 Non adjustable	0.3 (Bar)
SSMA310A(F)	10
SSMA315A(F)	15
SSMA330A(F)	30
SSMA360A(F)	60
SSMA3120A(F)	120

* Model with "A" at the end of the reference means 100/115V, but with "F" means 200/220V.
* The discharge volumes are fixed and cannot be adjusted.
* An oil level detecting Float Swicth can be attached to the unit.
