SHOWA SP DISTRIBUTOR HOSE

Models

Model Type	Air Hose Length	Specification	Connection Size & Application
SP1H(*)	305 L	Normal Operating Pressure 0.7MPa (7 Bar) Withstanding Pressure 1.4MPa (14 Bar)

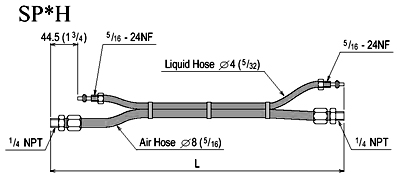

SP2H(*)	610 L		–	Air hose connection: 1/4 NPT & 1/8 NPT Air hose is 44.5mm longer than liquid hose
SP3H(*)	914 L
SP4H(*)	1220 L

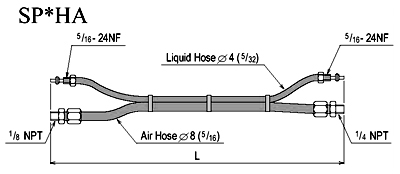

SP6H(*)	1828 L		A	Air hose connection: 1/8 NPT & 1/8 NPT Air hose and liquid hose are of equal length
SP8H(*)	2438 L
SP10H(*)	3048 L

* SP*H = Connecting FP2 to Distribution Block / SP*HA = Connecting FP3 to Distribution Block / Connecting Distribution Block to Spray Nozzle
