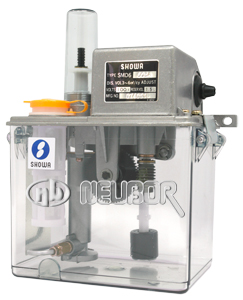

SHOWA SMD PISTON PUMP

The SMD model is a resistance type piston pump based upon the SMA model. Though the SMD possesses the same motor and mechanism as the SMA, the SMD has a quick attaching / detaching tank and each pump is fitted with a terminal board and a supply strainer.

Due to the flexibility and its ease of use, the SMD lubrication pumps are highly popular in many industries.

Technical Features

Model Type	Cycle Time (minutes)	Discharge Volume (cc/cy)	Máx. Pressure (MPa)	Discharge Port Size	Tank Capacity (L)	Effective Tank Capacity (L)
SMD35	5	1-3 Adjustable	0.2 (2 Bar)	M8 x 1.0	2	1.5
SMD310	10
SMD315	15
SMD330	30
SMD360	60
SMD3120	120
SMD65	5	3-6 Adjustable	0.3 (3 Bar)
SMD610	10
SMD615	15
SMD630	30
SMD660	60
SMD6120	120

* The discharge volume can be adjusted in 0.5 cc increments. The pumps default discharge rate are set to it's
  maximum flow -rate settings.
* A Float Swicth and an Instant Button cover are available as options.

Models

Model Type

Discharge Volume

Cycle Time

Float Switch Option

Power

SMD(A)(B)(C)(D)

(A)

3

1-3 Adjustable

(B)

5

5 min

(C)

0

—

(D)

A

1 Phase 100/115V

10

10 min

1

Float Switch

6

3-6 Adjustable

15

15 min

2

Cover

30

30 min

3

Float Switch + Cover

F

1 Phase 200/220V

8D

8 Non Adjustable

60

60 min

120

120 min
