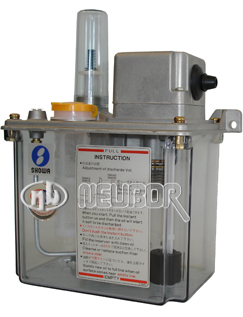

SHOWA SMA PISTON PUMP

The SMA piston pump is a resistance type automatic pump unit with adjustable output volumes. Various cycle time models are available. Due to the range and capabilities of the unit, it can be utilized in almost any situation where lubrication is required.

The SMA provides high performance at a very affordable price, making it a popular lubrication pump unit in a number of industries.

Technical Features

Model Type	Cycle Time (minutes)	Discharge Volume (cc/cy)	Máx. Pressure (MPa)	Discharge Port Size	Tank Capacity (L)	Effective Tank Capacity (L)
SMA35	5	1-3 Adjustable	0.2 (2 Bar)	M8 x 1.0	2	1.5
SMA310	10
SMA315	15
SMA330	30
SMA360	60
SMA3120	120
SMA65	5	3-6 Adjustable	0.3 (3 Bar)
SMA610	10
SMA615	15
SMA630	30
SMA660	60
SMA6120	120

* The discharge rate can be adjusted in 0.5 cc increments. The pump's initial flow-rate settings are set to its
   maximum discharge rates.
* A Float Swicth and an Instant Button cover are available as options.

Models

Model Type

Discharge Volume

Cycle Time

Tank Type

Float Switch Option

Power

SMA(A)(B)(C)(D)(E)

(A)

3

1-3 cc/cy Adjustable

(B)

5

5 min

(C)

0

Plastic 2L

(D)

0

—

(E)

A

1 Phase  100/115V

10

10 min

1

FloatSwitch

6

3-6 cc/cy Adjustable

15

15 min

2

Cover

30

30 min

1

Aluminium 2L

3

Float Switch +Cover

F

1 Phase  200/220V

8D

8 Non Adjustable

60

60 min

120

120 min
