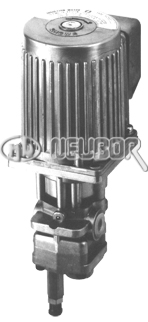

SHOWA MLC GEAR PUMP

The MLC pumps are designed for continuous circulating oil distribution in resistance type systems, which also possesses a cooling effect. The compact automatic gear pump, featuring a relief valve, possesses high levels of performance, durability and safety.

Two flow-rate models (0.5 and 1L/min).

This is a simplified version of the MLA, available at a lower cost.

Models and Technical Features

Model Type	Output Pressure (MPa)	Discharge Vol. (L/min)		Motor Output x Poles (W) x (P)	Current (A)
		50Hz	60Hz		200V (50Hz)	200V (60Hz)	220V (60Hz)
MLC051	0.5 (5 Bar)	0.51	0.59	25 x 4	0.29	0.25	0.27
MLC101		0.93	1.06	25 x 4	0.29	0.25	0.27

* The 25W motors can operate using 200, 220, 230Volts (50Hz - 0.26A) or 200, 220, 230, 240Volts (60Hz - 0.27A).
* Three phase 200V 50Hz, 200V 60Hz and 220V 60Hz are the standard, however, models can be made available to meet
  different power specificacions.
* Class E insulation
* After wiring, please ensure the motor rotates in the correct direction.
(The MLA006-05-5 model's top cover can be removed to allow visual confirmation of the motors rotation)
* Current (A) values conform to the NIDEC sandards (motors above 200W)
