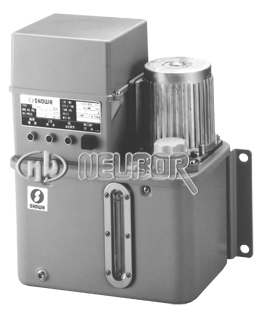

SHOWA LUBRICATION UNIT LCA3

The LCA3 centralized lubrication unit, designed for use in the volumetric type system, comes equipped with the MLB015W (03W) pump featuring a pressure displacement mechanism.

Various models are available based on the standard unit, such an as a LCA3 with in IC timer, pressure switch or a float switch option.

Technical Features

 Discharge Pressure (MPa) 1.5 (15 Bar)
 Discharge Volume (L/min) 50 Hz 0.16
60 Hz 0.19
 Viscosity Range (cSt) 20-2000
 Motor Output x Poles (W) x (P) 25 x 4
 Current (A) 200 V 50 Hz 0.26
200 V 60 Hz 0.27
220 V 60Hz 0.27
 IC Timer Type Y15 2-180 mins (Initially set to 4 min)
 Level Switch OLV Max. Voltage AC250V
Max. Current AC0.33A
Contact Point Under 0.1Ohm
 Pressure Switch GFB12 Max. Voltage AC250V
Max. Current 10 A

Models

Model
Type
Pump
Tank
IC Timer
(with monitoring function)
Pressure Switch
Float Switch
Abnormality Detection Lamp
"Instant"
Lube Button
MLB015W
TY4P
TY6P
Y15
GFB12
OLV*
LCA30101F(C)
X
X
 –
X
X
X
X
X
LCA30131E(C)
X
X
 – –
X
X
–
–
LCA30133E(C)
X
X
 – –
X
–
–
–
LCA30134E(C)
X
X
 – –
–
X
–
–
LCA30100E(C)
X
X
 – –
–
–
–
–
LCA30201F(C)
X
 –
X
X
X
X
X
X
LCA30231E(C)
X
 –
X
 –
X
X
–
–
LCA30233E(C)
X
 –
X
 –
X
–
–
–
LCA30234E(C)
X
 –
X
 –
–
X
–
–
LCA30200E(C)
X
 –
X
 –
–
–
–
–
* The last alphabetical character of the model code refers to the unit's power supply.
   E: Three phase 200 / 200•220V
   C: Single phase 100 / 100V
   F: Single phase 200 / 200•220V
* The Y15 timer utilizes single phase 100V or 200V
* The "F" option is only available for units with a Y15 Timer.
* Models not listed above are also available with different motors (pumps) and tanks. Please contact NEUBOR for futher details.
   Example: models with MLB03W, models with TD6P tanks.
