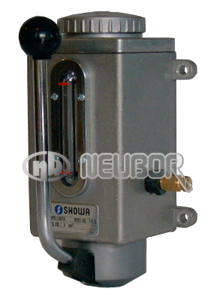

SHOWA LAW MANUAL PUMP

The LAW hand pump is designed for use in a volumetric type system. As oil can be dispensed by a pull of the lever installation and operation is simple.

Two types are available which can dispense either 6cc/stroke or 8cc/stroke of oil.

Models

Model Type	LAW6	LAW8DR(L)
Discharge Vol. (cc/st)	6	8
Max. Pressure (MPa)	–	4.0 MPa
Discharge Port Size	M10 x 1.0	Rc 1/8
Tank Capacity (L)	0.35	0.6
Effective Tank Capacity (L)	0.25	0.4

* Two types of LAW8D are available. The LAW8DR which discharges oil out from the right and the LAW8DL
   that discharges oil out from the left of the pump unit.
