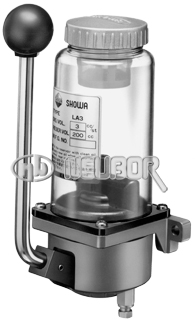

SHOWA LA MANUAL PUMP

The LA model is a simple to use manual pump. Distribution of oil is induced by the force created upon pulling the lever.

Three types of LA manual pumps are available, dispensing either 3cm3/stroke, 6cm3/stroke or 8cm3/stroke, and are ideal for use in conjunction with Injector Valves (Resistance type Distribution Junctions).

Two types of LA8D* models are available. The LA8D*L have distribution ports on opposing sides, broadening installation capabilities.

Models and Technical Features

Model
Type
Discharge Volume
Max. Pressure (MPa)
Discharge
Port Size
Tank
Capacity (L)
Effective Tank
Capacity (L)
 LA3
3 cc/st
1.5 (15 Bar)
M8 x 1.0
0.21
0.17
 LA6-4(6)
6 cc/st
1.5 (15 Bar)
LA6-4=M8x1.0 LA6-4=M10x1.0
0.35
0.25
 LA8DR(L)
8 cc/st
1.5 (15 Bar)
Rc 1/8
0.6
0.4
