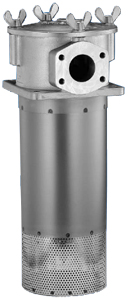

Fairey Arlon filter TTF tank top series are mounted return line filters feature pre-filtration by means of a magnet column and a full flow bypass with low hysteresis. Thanks to the "In-to-Out" filter principle, contaminated oil cannot leak back into the system.

TTF filters are available in versions capable of handling flow rates up to 500 l/min. They can operate up to a maximum working pressure of 10 Bar. Optional filling port in filter cover, second return port and customised diffusers can be specified. Manifold type filter head (TSR Series) with four return ports is also available.

Flow
Rate
