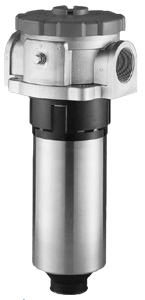

FAIREY ARLON TANKTOPPER SERIES FILTERS


Fairey Arlon filter Tanktopper series are mounted return line filters and a full flow bypass with low hysteresis.

Thanks to the "In-to-Out" filter principle, contaminated oil cannot leak back into the system. Tanktopper filters are available in versions capable of handling flow rates up to 200 l/min. They can operate up to a maximum working pressure of 5 Bar. As optional magnetic prefiltration, dispstick and airbreather.


Technical Features

Flow
Rate
 Maximum Operating
Pressure
Element
Collapse
Rating
Micron
Rating
Filter
Media
Working Temperature
Ports
Up to
650 l/min
 10 Bar
 10 Bar
From
3µm
to
20µm
Glass Fibre
From -40ºC
to 120ºC
From G3/4 to G1-1/2
