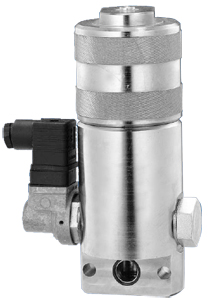

FAIREY ARLON SERVOSAVER SERIES FILTERS


ServoSaver filters offer point-of-use filtration for some of the most sensitive hydraulic valves that there are, servo/proportional valves. Complete protection is provided by non-bypass filters equipped with high collapse strength elements installed directly at the valve.

The ServoSaver is designed specifically for this use and is not an adaption of an in-line filter intended for bypass filtration. The ServoSaver filter can also be mounted to pumps, cylinders or other hydraulic devices. Special adapter blocks or manifold porting makes direct mounting simple and provides for compact installation.

Technical Features

Flow
Rate
 Maximum Operating
Pressure
Element
Collapse
Rating
Micron
Rating
Filter
Media
Working Temperature
Ports
Up to
110 l/min
 275 Bar
 200 Bar
From 3µm
to 15 µm
Betamaze
From -4ºC
to 100ºC
SAE 12 or Manyfold
