Fairey Arlon PVS2700 Filter

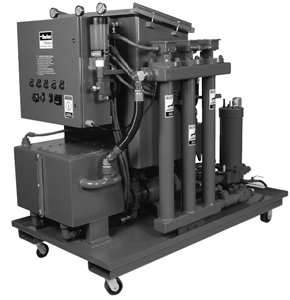

Fairey Arlon PVS2700 portable purification system clean oil contaminated with water. Water is one of the most common contaminants in a fluid system and also one of the most damaging. The Parker PVS was designed for use in papermills, steel mills, power generation and industrial/aerospace fields.

Features a condensate holding tank to eliminate potential hazard of exhausting into the atmosphere Compact size allows for easy transport and movement, increasing use Automatic operation increases running time and reduces labor costs High temperature safety circuit prevents system damage. Programmable thermostat allows for unattended operation and increases oil life.

Technical Features

Flow Rate	170,3 l/min
Height	1778 mm
Width	1524 mm
Length	1829 mm
Weight	817 Kg
Seal Material	Fluorocarbon (EPR opt.)
Condensate Tank	31,4 ltrs
Dispersal Elements	8
Minimum Operating Capacity	68,1 ltrs
Vacumm (Max)	0'84 Bar
Viscosity (Max)	108 cSt (Disposable)
Viscosity (Max)	460 cSt (Cleanable)
Outlet Pressure (Max)	4,1 Bar
Ports	3" NPTF inlet
Ports	2" NPTF outlet
