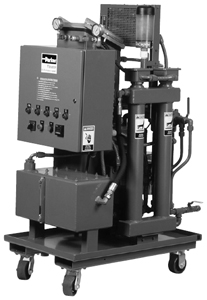

FAIREY ARLON PVS185 FILTER


Fairey Arlon PVS185 portable purification system clean oil contaminated with water. Water is one of the most common contaminants in a fluid system and also one of the most damaging. The Parker PVS was designed for use in papermills, steel mills, power generation and industrial/aerospace fields.

Features a condensate holding tank to eliminate potential hazard of exhausting into the atmosphere Compact size allows for easy transport and movement, increasing use Automatic operation increases running time and reduces labor costs High temperature safety circuit prevents system damage. Programmable thermostat allows for unattended operation and increases oil life.

Technical Features

 Flow Rate
18,9 l/min
 Minimum Operating
 Capacity
18,9 ltrs
 Height
1524 mm
 Width
635 mm
 Vacumm (Max)
0'84 Bar
 Length
914 mm
 Outlet Pressure (max)
4,1 Bar
 Weight
227,3 Kg
 Viscosity (Max)
108 cSt (Disposable)
 Seal Material
Fluorocarbon (EPR opt.)
460 cSt (Cleanable)
 Condensate Tank
15'5 ltrs
 Ports
3/4 JIC (male) inlet
 Dispersal Elements
1
3/4 JIC (male) outlet
