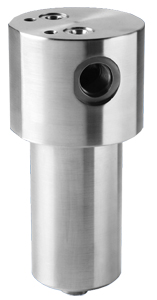

FAIREY ARLON 12S SERIES FILTER


Fairey Arlon's 12S design is lightweight and compact, while designed for extreme service. The 12S is also easy to service and install. Features include many reliable indicator options to support preventive maintenance and data collection. Drain ports promote cleanliness and serviceability. Microglass III elements offer high efficiency to keep systems clean and reliable. Increased dirt holding capacity means longer service life.

Fairey Arlon's 12S is designed for high pressure (up to 1.379 bar) operation (port and indicator options may limit max. pressure).  12S filters feature application verified filter media to protect system.  12S is designed for extreme performance: optional 12S with FFKM seals and/or welded element.

Technical Features

Flow
Rate
Maximum
Operating
Pressure
Element Collapse
Rating
Micron
Rating
Filter
Media
Working Temperature
Ports
Up
to 70 l/min
12SMP / 690 Bar.
12SHP / 1380 Bar.
H option
138 Bar
From 2 µm
to 20µm
Microglass III
From -26ºC
to 135ºC
From
1/4" Nominal
to 1" Nominal
