FUJITA YC SERIES

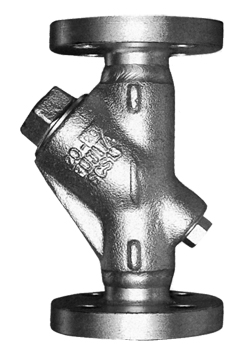

YC y-type check valves provide accurate and perfect non-return of fluid. The pressure drop is very small due to the full bore size. YC valves open the way easily thanks to the different surface areas between the inlet and outlet ports. These valves are used with Steam, Oil, Hot and Cold Water and Nonflammable gases and specially used in tire curing presses.

Technicals Features

Fluid	Steam , Oil, Hot & Cold Water, Nonflammable Gas
Operating Pressure	Max. 3.2MPa (32 Bar 460 psi)
Temperature	Max. 205ºC

* BSP and NPT Threads are available on option
* DIN and ANSI Flanges are available on option

Models

Model	Dn Size	Lenght (mm)	Weight (kg)
YC-RC-15A	15	178	3.2
YC-RC-20A	20	178	3.3
YC-RC-25A	25	203	4.9
YC-RC-32A	32	216	7
YC-RC-40A	40	229	7.2
