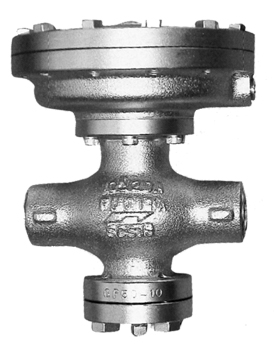

FUJITA SRV/B SERIES

SRV/B Diaphragm valves are pneumatically operated and are employed for precise pressure regulation of Steam and Nonflammable gases. The output pressure can be modified easily by changing the pressure of the pilot air. The valve is operated from the bottom air inlet. They are available as NO or NC valves. Threaded and flanged versions exist. Threaded versions they are normally supplied with JIS Rc threads., BSP and NPT threads are available under demand. Flanged versions are normally supplied with JIS10kRF. ANSI and DIN flanges are available under demand. SRV/B valves are used in tyre curing presses.

Technicals Features

Fluid	Steam & Nonflammable Gas
Operating Pressure	Max. 1.5MPa (15 Bar 215 psi)
Temperature	Max. 210ºC

* BSP and NPT Threads are available on option
* DIN and ANSI Flanges are available on option

Models

Model	Thread Rc	Height (mm)	Weight (kg)
SRV/B-RC-20A	3/4B	187	7.2
SRV/B-RC-25A	1B	215	10
SRV/B-RC-32A	11/4B	300	30.2
SRV/B-RC-40A	11/2B	300	30.2
