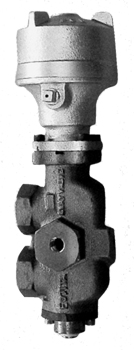

FUJITA P4WS SERIES

P4WS valves are 4 way piston valve used to control the cold water line. These series are pneumatically operated by a single acting cylinder. These valves are supplied with threads type JIS Rc. BSP and NPT threads are available under demand. P4WS valves are used in tire curing presses.

Technicals Features

Fluid	Cold Water
Operating Pressure	Max. 3.0MPa (30 Bar 430 psi)
Temperature	Max. 65 ºC
Pirot Air Pressure	0.25 ~ 0.35 MPa (2.5 ~ 3.5 Bar 36-51 psi)

* BSP and NPT Threads are available on option

Models

Model	Thread Rc	Weight (kg)
P4WS-8A	1/4	4.7
P4WS-10A	3/8	4.7
P4WS-15A	1/2	4.7
P4WS-20A	3/4	4.7
