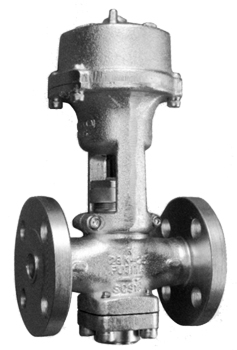

FUJITA P3WR-RF1 SERIES

P3WR-RF1 valves are pneumatically operated by a single acting cylinder and they are designed for fluids such as Steam, Hot and Cold Water, Oil and Nonflammable Gases. These models are reduce flow versions and can be supplied in NC and NO versions. It is possible to change from 3-way into a 2-way valve by mounting a plug. These valves are supplied with flanges types JIS20kRF. ANSI and DIN flanges are available under demand. PW3R-RF1 valves are used in tyre curing presses.

Technicals Features

 Fluid
Steam, Oil, Hot & Cold Water, Nonflammable Gas

 Operating Pressure

Max. 3.2MPa (32 Bar 460 psi)
 Temperature
Max. 205 ºC
 Pilot Air Pressure
0.25 ~ 0.35MPa (2.5 ~ 3.5 Bar 36-51 psi)
* DIN and ANSI Flanges are available on option

Models

Model
Dn
Size
Height
(mm)
Weight
(kg)
 P3WR-RF1-8A
10
215
4.3
 P3WR-RF1-10A
10
215
4.3
 P3WR-RF1-15A
15
215
4.3
 P3WR-RF1-20A
20
262
5.7
 P3WR-RF1-25A
25
301
9
 P3WR-RF1-32A
32
343
12.8
