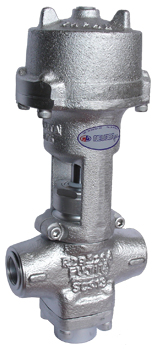

P3W-RC2 valves are pneumatically operated by a single acting cylinder and they are designed for fluids such as Steam, Hot and Cold Water, Oil and Nonflammable Gases. These models are full flow versions and can be supplied in NC and NO versions. It is possible to change from 3-way into a 2-way valve by mounting a plug. These valves are supplied with threads type JIS Rc. BSP and NPT threads are available under demand.
PW3-RC2 valves are used in tire curing presses.
Steam, Oil, Hot & Cold Water, Nonflammable Gas
Max. 3.2MPa (32 Bar 460 psi)
Max. 205 ºC
Pilot Air Pressure
0.25 ~ 0.35MPa (2.5 ~ 3.5 Bar 36-51 psi)
* BSP and NPT Threads are available on option
