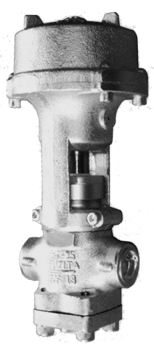

P3W-RC1 valves are pneumatically operated by a single acting cylinder and they are designed for fluids such as Steam, Hot and Cold Water, Oil and Nonflammable Gases. These models are full flow versions and can be supplied in NC and NO versions. It is possible to change from 3-way into a 2-way valve by mounting a plug. These valves are supplied with threads type JIS Rc. BSP and NPT threads are available under demand.
PW3-RC1 valves are used in tire curing presses.

Steam, Oil, Hot & Cold Water, Nonflammable Gas

Max. 3.2MPa (32 Bar 460 psi)

Max. 205 ºC

0.25 ~ 0.35 MPa (2.5 ~ 3.5 Bar 36-51 psi)

Model

Thread
Rc

Height
(mm)

Weight
(kg)

3/8

215

2.8

1/2

215

3.7

3/4

262

6.4

1

301

9

11/4

342

15

11/2

387

15
