FUJITA DKV SERIES

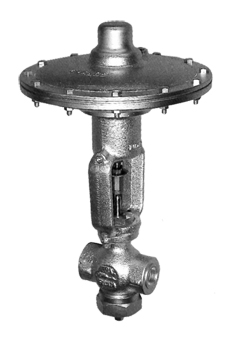

DKV Diaphragm valves are pneumatically operated and are employed for precise flow regulation of Steam and Nonflammable gases. They are available as NO or NC valves. Threaded and flanged versions exist. Threaded versions they are normally supplied with JIS Rc threads. BSP and NPT threads are available under demand. Flanged versions are normally supplied with JIS10kRF. ANSI and DIN flanges are available under demand. DKV valves are used in tire curing presses.

Technicals Features

Fluid	Steam & Nonflammable Gas
Operating Pressure	Max. 1.7MPa (17 Bar 246 psi)
Temperature	Max. 205 ºC
Pilot Air Pressure	0.02 ~ 0.1MPa (0.2 ~ 1.0Bar 2.9-14.5 psi)

* BSP and NPT Threads are available on option
* DIN and ANSI Flanges are available on option

Models

Model	Thread Rc	Weight (kg)
DKV-RC-15A	1/2	7.2
DKV-RC-20A	3/4	7.2
DKV-RC-25A	1	7.2
