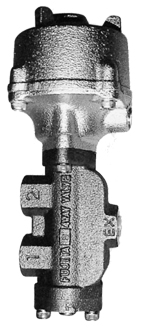

C4WD valves are 4 way piston valve used to control the cold water line. These are the compact models suitable to mount in narrow spaces. C4WS are pneumatically operated by a double acting cylinder. These valves are supplied with threads type JIS Rc. BSP and NPT threads are available under demand. C4WD valves are used in tyre curing presses.

Cold Water

Max. 3.0MPa (30 Bar 430 psi)

Max. 65 ºC

0.25 ~ 0.35 MPa (2.5 ~ 3.5 Bar 36-51 psi)

Model

Thread Rc

Weight (kg)

1/4

2.3

3/8

2.3
