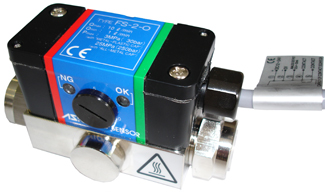

You can use the flow sensor with an input power supply of from 12 to 24 VDC (permissible voltage fluctuation ±10%).
The amplifier protection structure conforms to IP67. You can set the lower limit of the flowrate.
If the flowrate falls below this limit, the red LED lamp (NG) turns on, and contact signal output is given to notify the operator of the critical situation.
Analog output (4 to 20 mA) proportional to the flowrate is issued.
In the case of low pressure specifications, you can check the flow of fluid by observing the rotor rotation.
In the case of high pressure specifications, you can measure the flowrate at 25MPa. ( except FS-1 ) For FS-2, 3 and 6, 8 excluding , be sure to use it with the cap B (for high pressure) mounted in position. (Cap B (for high pressure) is mounted when shipped from the factory).
You can use the sensor at the desired installation position (horizontal, vertical or tilted position) in the desired inflow direction. Remove the cap from the front of the main body, and to clean the rotor by air.
