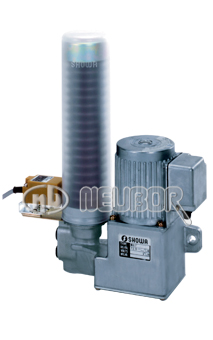

SHOWA MHG7 AUTOMATIC PUMP

The MHG7 is an automatic pump designed for larger lubrication requirements.

The grease discharge rate is 7.5cc/min. and is available in either a grease cup (tank) or a cartridge supply type model. As this unit does not possess an IC timer (control board), please operate the unit intermittently when required (manually or through a control/timer device).

Models and Technical Features

Model
Type		 Discharge
Volume
(cc/st)		 Max.
Pressure
(MPa)		 Discharge Port Size Supply
Type 		Capacity Grease Classification Number
(NLGI)
 MHG71
 7.5 (50Hz) 14
(140 Bar)		 Rc 1/8 Cartridge 400g No. 00 - 1
 MHG72
 9.0 (60Hz) Tank 300cc
* Model with "E" at the end of the reference means Three phase 200/220V (50/60Hz).
* Model with "C" at the end of the reference means Monophasic 110V (50/60Hz).
* Model with "M" at the end of the reference means Monophasic 110V-60Hz.
* Model with "F" at the end of the reference means Monophasic 200/220V (50/60Hz).
