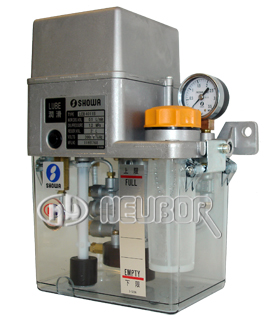

SHOWA LUBRICATION UNIT LCB4

The LCB4 is a compact centralized lubrication unit supplied without an IC timer (control board). The basic unit combines a MLB01W1 pump with a 2L tank. Various models are available based on the basic unit, such as an LCB4 with a varying combination of a pressure switch, pressure gauge or a float switch option.

As the LCB4 models are supplied without an IC timer (board control), please connect the unit to a timer system either on the target machine or to another device which would enable intermittent operation of the pump unit.

Technical Features

 Discharge Vol. (L/min)
0.1L/min (50Hz) 0.12L/min (60HZ)

 Discharge Pressure (MPa)

1.2 MPa (12 Bar)
 Voltage
100V (C)
200V (B)
 Frequency
50Hz
60Hz
50Hz
60Hz
 Current (A)
1.5
1.2
0.8
0.6
 Rotating Speed
2500rpm
3000rpm
2500rpm
3000rpm
 Motor Output x Poles (W) x (P)
17 x 2
 Insulation
E class
 Max. Operating Time
5 minutes
 Intermitence
Operating Time x >2, Minimum 2 minutes
 Tank Capacity
2L (Effective Capacity : 1.3L)
 Float Switch (OLV01)
Contact Capacity: Max. AC 0.33A DC0.5A
 Pressure Switch (GFB8)
Contact Capacity: Max. AC250V 10A
 Viscosity Range (cSt)
50 - 800

Models

Model
Code
Pump
Tank / Reservoir
Pressure
Switch
Float
Switch
Pressure
Gauge
"Instant" Lube
Button
MLB01W2
2L
Plastic
2L  Aluminum
4L
Plastic
6L
Plastic
GFB8
OLV01
PGLS35
LCB4011C(B)
X
X
–
–
–
X
X
X
X
LCB4021C(B)
X
X
–
–
–
–
X
X
X
LCB4031C(B)
X
X
–
–
–
X
–
X
X
LCB4041C(B)
X
X
–
–
–
–
–
X
X
LCB4010C(B)
X
X
–
–
–
X
X
–
X
LCB4020C(B)
X
X
–
–
–
–
X
–
X
LCB4030C(B)
X
X
–
–
–
X
–
–
X
LCB4040C(B)
X
X
–
–
–
–
–
–
X
LCB4111C(B)
X
–
X
–
–
X
X
X
X
LCB4121C(B)
X
–
X
–
–
–
X
X
X
LCB4131C(B)
X
–
X
–
–
X
–
X
X
LCB4141C(B)
X
–
X
–
–
–
–
X
X
LCB4110C(B)
X
–
X
–
–
X
X
–
X
LCB4120C(B)
X
–
X
–
–
–
X
–
X
LCB4130C(B)
X
–
X
–
–
X
–
–
X
LCB4140C(B)
X
–
X
–
–
–
–
–
X
LCB4210C(B)
X
–
–
X
–
X
X
X
X
LCB4310C(B)
X
–
–
–
X
X
X
X
X
