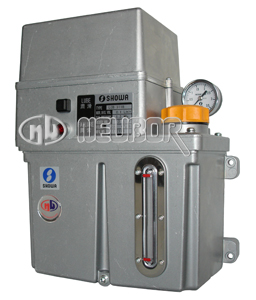

SHOWA LUBRICATION UNIT LCB3

The LCB3 unit is fitted with a die-cast aluminium 3.4L tank, cover and flange. Units with an IC timer (control board) can set their operating intervals to a possible 10 steps between 2 to 192 minutes, which can be changed by a single switch. These units also come fitted with indicator lamps, enabling verification of operational status and errors.

All LCB3 models are provided with an “Instant” oil supply button, enabling the operator to immediately start oil distribution manually.

Technical Features

Discharge Vol. (L/min)	0.1L/min (50Hz) 0.12L/min (60HZ)
Discharge Pressure (MPa)	1.2 MPa (12 Bar)
Voltage	100V (C)		200V (B)
Frequency	50Hz	60Hz	50Hz	60Hz
Current (A)	1.5	1.2	0.8	0.6
Motor Output x Poles (W) x (P)	17 x 2
Viscosity Range (cSt)	50 - 800
Timer Model Type	YT1-01		YT1-02
Voltage	100 V		200 V
Power Consumption (inc. Motor)	1.6 / 1.3A 50 / 60Hz		0.9 / 0.7A 50 / 60Hz
Pump Operation Time	Time to reach set pressure level (max. 60sec) + 15sec
Intermitence	2, 4, 8, 16, 24, 32, 48, 64, 128, 192 minutes
Warning Signal Relay Rating	AC250V 4A, DC30V 3A (Resistence Load)

Models

Model Code	Pump	Tank	IC Timer	Pressure Switch	Float Switch	Pressure Gauge	Abnormality Detection Lamp	"Instant" Lube Button
Model Code	MLB01W1	TY3D	YTI-*	GFB8	OLV*	PGLS35	Abnormality Detection Lamp	"Instant" Lube Button
LCB311C(B)	X	X	X	X	X	X	X	X
LCB310C(B)	X	X	X	X	X	–	X	X
LCB321C(B)	X	X	–	X	X	X	–	X
LCB320C(B)	X	X	–	X	X	–	–	X
LCB331C(B)	X	X	–	–	X	X	–	X
LCB330C(B)	X	X	–	–	X	–	–	X
LCB341C(B)	X	X	–	X	–	X	–	X
LCB340C(B)	X	X	–	X	–	–	–	X
LCB351C(B)	X	X	–	–	–	X	–	X
LCB350C(B)	X	X	–	–	–	–	–	X

* The Pressure Switch is connected to the unit's internal piping system
