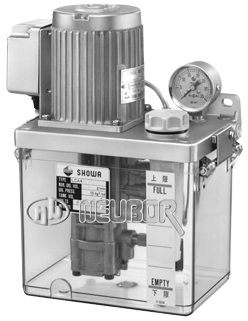

SHOWA LUBRICATION UNIT LCA4

The basic LCA4 centralized lubrication unit, combines a MLB015W (or 03W) pump with a 2L or 4L plastic tank, or 2L aluminium tank. Various models are available based on the basic unit, such as an LCA4 with an IC timer (available only with a 4L tank), pressure gauge or a float switch option.

Please, connect models without an IC timer (control board) to a timer system either on the target machine or to another device, enabling intermittent operation of the pump unit.

Technical Features

Discharge Pressure (MPa)	1.5 (15 Bar)
Discharge Volume (L/min)	MLA015W		MLA03W
	50 Hz	60 Hz	50 Hz	60 Hz
	0.16	0.19	0.28	0.33
Viscosity Range (cSt)	20-2000
Motor Output x Poles (W) x (P)	25 x 4
Current (A)	200 V 50 Hz		0.26
	200 V 60 Hz		0.27
	220 V 60Hz		0.27
IC Timer Type Y15	2-180 mins (Initially set to 4 min)
Level Switch OLV	Max. Voltage		AC250V
	Max. Current		AC0.33A
	Contact Point		Under 0.1Ohm
Pressure Switch GFB12	Max. Voltage		AC250V
	Max. Current		10 A

Models

Model Type	Pump		Tank		IC Timer	Pressure Switch	Float Switch	Pressure Gauge		Abnormality Detection Lamp	"Instant" Lube Button
Model Type	MLB015W	MLB03W	TP2 (2L)	TP4 (4L)	Y15	GFB12	OLV*	PGL35	PGLS35	Abnormality Detection Lamp	"Instant" Lube Button
LCA40132E(C)	X	–	X	–	–	–	X	–	X	–	–
LCA40100E(C)	X	–	X	–	–	–	–	–	–	–	–
LCA40201F(C)	X	–	–	X	X	X	X	–	X	X	X
LCA40232E(C)	X	–	–	X	–	–	X	X	–	–	–
LCA40200E(C)	X	–	–	X	–	–	–	–	–	–	–
LCA40332E(C)	–	X	X	–	–	–	X	–	X	–	–
LCA40300E(C)	–	X	X	–	–	–	–	–	–	–	–
LCA40401F(C)	–	–	–	X	X	X	X	–	X	X	X
LCA40432E(C)	–	–	–	X	–	–	X	X	–	–	–
LCA40400E(C)	–	–	–	X	–	–	–	–	–	–	–

* The last alphabetical character of the model code refers to the unit's power supply.
   E: Three phase 200 / 200•220V
   C: Single phase 100 / 100V
   F: Single phase 200 / 200•220V
* "01" is only available with a 4L tank combination.
* The "F" option is only available for units with a Y15 Timer.
For 2L Aluminum tank, please contact to NEUBOR.
