FAIREY ARLON PVS1200 FILTER

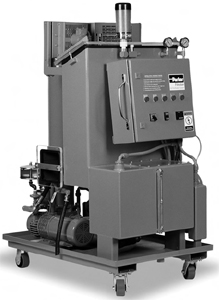

Fairey Arlon PVS1200 portable purification system clean oil contaminated with water. Water is one of the most common contaminants in a fluid system and also one of the most damaging. The Parker PVS was designed for use in papermills, steel mills, power generation and industrial/aerospace fields.

Features a condensate holding tank to eliminate potential hazard of exhausting into the atmosphere Compact size allows for easy transport and movement, increasing use Automatic operation increases running time and reduces labor costs High temperature safety circuit prevents system damage. Programmable thermostat allows for unattended operation and increases oil life.

Technical Features

 Flow Rate
75,7 l/min
 Minimum Operating
 Capacity
41,6 ltrs
 Height
1651 mm
 Width
813 mm
 Vacumm (Max)
0'84 Bar
 Length
1219 mm
 Outlet Pressure (max)
4,1 Bar
 Weight
636 Kg
 Viscosity (Max)
108 cSt (Disposable)
 Seal Material
Fluorocarbon (EPR opt.)
460 cSt (Cleanable)
 Condensate Tank
31,4 ltrs
 Ports
1-1/2" NPTF inlet
 Dispersal Elements
4
1" JIC (male) outlet
