Centralized Lubrication Systems, Hydraulics and Pneumatics

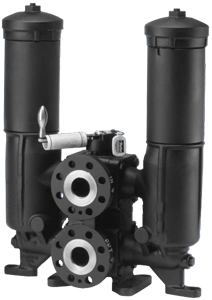

FAIREY ARLON MPD SERIES FILTERS

MPD series filters are an outstanding choice for today's demanding hydraulic control and circulating oil systems. The MPD's innovative modular design, rugged ductile iron construction and coreless element technology, combined with many other features, provide solutions across a broad range of industrial applications.

The Modular design provides user flexibility for simplex or duplex applications. Incorporating side chambers as simplex filters along with duplex installations provide common elements across the circuit design.

Construction features like full ported transfer valve with neutral center flow capability offer tremendous benefit in cold start conditions. Standard features like pressure sensing taps, vents, drains and internal pressure equalization make this product incomparable in industry.

Technical Features


Flow
Rate
 Maximum Operating
Pressure
Element
Collapse
Rating
Micron
Rating
Filter
Media
Working Temperature
Ports
Up
to
500 l/min
81 Bar
(SAE ports)
30 Bar
(ANSI ports)
 10 Bar
From
3µm
to
20µm
Microglass
and
Ecoglass
From
-26ºC
to
71ºC
SAE 2"
and
2" 300lb RF ANSI Flange
