FAIREY ARLON IN-AGB SERIES FILTERS

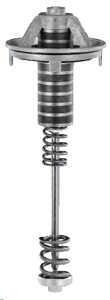

Fairey Arlon's IN-AGB Filter Insert allows individual or custom design of your reservoir with an in-tank filtering system. The IN-AGB Insert can be used as either a suction or return line filter. Filtration begins with magnetic prefiltration which collects ferromagnetic particles from fluid upstream of the filter element.This feature alone could save hundreds of dollars a year in hydraulic component costs by assuring that the fluid is as clean as possible when it leaves the filter. Even during bypass, contaminants are collected by the magnetic core, an important feature in any fluid power system.

Insert - The IN-AGB Filter Insert is an all-in-one self contained filter that allows you to design your own intank filter. Ideal for either suction or return line filtering. The IN-AGB Insert can save space, reduce plumbing and reduce pressure drops.
In-Tank - The In-Tank Filter is a return line filter which utilizes the IN-AGB Insert. It is ideal for low contour vehicles, mobile equipment with reservoirs integral to the vehicle frame and compact stationary power units. The reservoir can be filled through the filter.
In-Line Filters - The In-Line Filters are designed for applications in suction, pressure and return lines and use the IN-AGB Insert. Models available with pressures up to 5 MPa and flows up to 750 lpm.

Technical Features

Flow
Rate
 Maximum Operating Pressure
 Element Collapse Rating
 Micron
Rating
Filter
Media
 Working
Temperature
Up
to 2000 l/min
30 Bar
10 Bar
From 3µm
to 120 µm
Cellulose,
HPFE Glass Fibre and
Stainless Steel Mesh
 From -40ºC
to 120ºC
