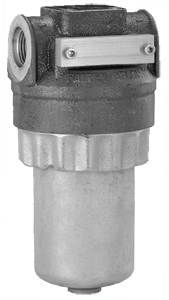

FAIREY ARLON AGS SERIES FILTERS


Model AGS is designed for inline mounting applications on all kind of medium pressure hydraulic and lubrication systems. Two models exists depending on the flow rate, the smaller is for filtering up to 50 l/min and the bigger one for filtering up to 100 l/min. The maximum working pressure is 50 Bar. Optionally visual and electrical indicators can be adapted.


Technical Features

Flow
Rate
 Maximum Operating
Pressure
Element
Collapse
Rating
Micron
Rating
Filter
Media
Working Temperature
Ports
Up
to
100 l/min
 50 Bar
 10 Bar
From
3µm
to
40µm
 Cellulose,
HPFE glass fibre and Stainless Steel Mesh
From -40ºC
to
120ºC
From
G3/4
to
G1
